A process used to grow high-purity diamond by breaking down hydrocarbon gas molecules (usually methane) into carbon atoms that deposit onto a substrate in a vacuum chamber.

The industry standard for high-quality single-crystal diamond. Uses microwave energy to create a stable plasma discharge for precise growth control.

A growth method that mimics natural diamond formation by applying extreme pressure (5–6 GPa) and heat (1,300–1,600 °C) to a carbon source and a metal catalyst.

Uses heated tungsten or tantalum filaments to sublimate gases. Primarily used for large-area polycrystalline coatings.

The process of growing diamond on a non-diamond substrate (e.g., Silicon or Iridium). The primary method for creating large-area diamond wafers.

Growing diamond on a diamond seed or substrate, ensuring the highest crystalline quality.

The vacuum vessel where the CVD reaction occurs. Must maintain extreme vacuum seals and high-temperature stability.

Precision systems used to introduce ultra-pure Methane (CH₄), Hydrogen (H₂), and dopants like Boron into the growth chamber.

The massive hydraulic machinery used in HPHT growth. Common types include BARS (Split-Sphere) and Cubic presses.

The power source that generates the electromagnetic waves required to ionize gases into plasma in MPCVD systems.

Devices that precisely measure and control the flow rate of precursor gases into the reactor.

Diamond with a continuous, unbroken crystal lattice. Critical for high-end optics and semiconductor power devices.

A material consisting of many small diamond grains. Used for heat sinks and heavy-duty cutting tools.

Diamond films with grain sizes in the 2–5 nm range, offering extreme smoothness for MEMS devices.

Diamond infused with boron to make it electrically conductive. Used in electrochemical oxidation and sensors.

Diamond grown using isotopically pure Carbon-12 to remove the magnetic noise caused by Carbon-13 isotopes.

A point defect where a nitrogen atom replaces a carbon atom adjacent to an empty lattice site. Used for quantum computing and sensing.

A color center defect offering superior optical properties (narrower linewidths) for quantum networking.

A measurement of how long a quantum state (qubit) can be maintained in a diamond defect before being lost to noise.

A technique used to characterize the spin state of NV centers using microwave radiation and light.

The enhancement of a defect's emission rate by placing it in a micro-cavity, used in diamond photonics.

Diamond's bandgap of ~5.47 eV allows it to handle much higher voltages and temperatures than Silicon (1.1 eV).

The maximum electric field a material can withstand. Diamond: ~10 MV/cm — the highest of any known semiconductor.

The speed at which electrons and "holes" move through the diamond lattice.

A numerical value used to compare materials for high-frequency power transistors. Diamond's JFOM is the highest known.

A highly conductive layer that forms on the surface of Hydrogen-terminated diamond, essential for diamond HEMTs (transistors).

The introduction of Boron atoms to create "holes" for electrical conductivity.

The introduction of Phosphorus atoms. Technically difficult due to the large size of the Phosphorus atom compared to Carbon.

Capping the diamond surface with Hydrogen atoms to create surface conductivity.

Capping the surface with Oxygen to make the diamond surface highly insulating.

Using a surface coating (like Molybdenum Trioxide) to "pull" electrons out of the diamond, creating high conductivity without damaging the lattice.

Heating diamond to high temperatures in an inert atmosphere to relieve internal stress or activate dopants.

Using boiling sulfuric or nitric acid to remove non-diamond carbon (graphite) after the growth process.

Applying high pressure and temperature to "heal" lattice vacancies or change the charge state of defects.

Using an accelerator to create vacancies in the lattice, often for producing quantum-grade material.

The process of cutting large diamond plates into smaller, precise wafers.

An ultra-short pulse laser used for "cold" ablation, preventing the diamond from turning into graphite during the cut.

The width of material removed by the cutting process. Minimizing this is a major cost-saving priority.

A precision removal process using a beam of ions to etch features at the micro or nanoscale.

A machine that uses chemical slurries and abrasive pads to achieve "atomically flat" surfaces (Ra < 1 nm).

A high-speed rotating cast-iron wheel impregnated with diamond dust, used for the initial lapping of raw plates.

Equipment used to create micro-structures in diamond using oxygen or fluorine-based plasmas.

The primary machine for measuring Thermal Conductivity (measured in W/mK).

An ultra-fast optical system used to measure the thermal properties of thin diamond films.

A non-contact method used to measure thermal transport across the surface of a wafer.

A probe-based tool used to certify Surface Roughness (Ra) at the atomic level.

Used to measure crystalline perfection by analyzing the "Rocking Curve" of the diamond.

An optical tool used to measure the Flatness, Bow, and Warp of diamond wafers.

The most sensitive machine for detecting Nitrogen or Boron impurities at parts-per-billion (ppb) levels.

A laser tool that confirms diamond purity by measuring the lattice vibration at the 1332 cm⁻¹ peak.

Measures the transmission of light through diamond optical windows to ensure no absorption from impurities.

A machine used to determine carrier concentration and mobility in doped diamonds.

Identifies "traps" or defects within the diamond bandgap that could interfere with electronics.

A system used for non-destructive Capacitance-Voltage measurements on diamond wafers.

The ability to move heat; tech diamonds range from 1,000 to over 2,200 W/mK.

The measurement of the texture of the surface; sub-nanometer Ra is required for electronics.

A measure of the number of defects in the crystal lattice per square centimeter.

An optical property that must be minimized for high-power laser windows.

A room-temperature process used to bond diamond to other semiconductors without using heat.

The resistance to heat flow at the interface where diamond meets another material (like GaN).

The layers of metal (e.g., Titanium/Gold) applied to diamond to allow for electrical connections.

Attaching diamond thin films to silicon wafers without using intermediate adhesive layers.

Thin diamond plates used to dissipate heat from CPUs and laser diodes.

A semiconductor wafer where Gallium Nitride is bonded to a diamond substrate for extreme power density.

A high-power electronic component used in power grids and EVs.

A transistor capable of operating at temperatures above 300 °C.

Diamond plates used in high-power CO₂ lasers or EUV lithography machines.

Diamond speaker domes or high-frequency filters that leverage diamond's high acoustic velocity.

BDD plates used for wastewater treatment and ozone generation.

Diamond-based sensors used in high-radiation environments like CERN or nuclear reactors.

A measure of stiffness; diamond is the stiffest known bulk material (~1,220 GPa).

The speed of sound through diamond (~18,000 m/s).

A metric used to verify the hardness of PCD composites used in drilling.

The resistance of the diamond to crack propagation.

Diamond has a very low CTE (1.0 × 10⁻⁶/K), which can cause stress when bonded to other materials.

The amount of heat required to change the temperature of the diamond.

A measure of how quickly a material reaches thermal equilibrium.

Diamond's ability to maintain its properties after being bombarded by high-energy particles.

A metric for radiation detectors measuring how many generated electrons reach the electrodes.

The energy required to knock a carbon atom out of position (diamond: ~43 eV).

The degree to which the diamond consists of only one isotope (usually Carbon-12).

A diamond lattice made of Carbon-12 that does not interfere with quantum spin states.

The process that limits thermal conductivity; isotopic purity reduces this scattering.

Diamond material that has not yet been processed (cut or polished) after leaving the reactor.

The percentage of diamond seed plates that can be recovered and used for a second growth cycle.

Diamond material grown in large diameters (2-inch, 4-inch, or larger).

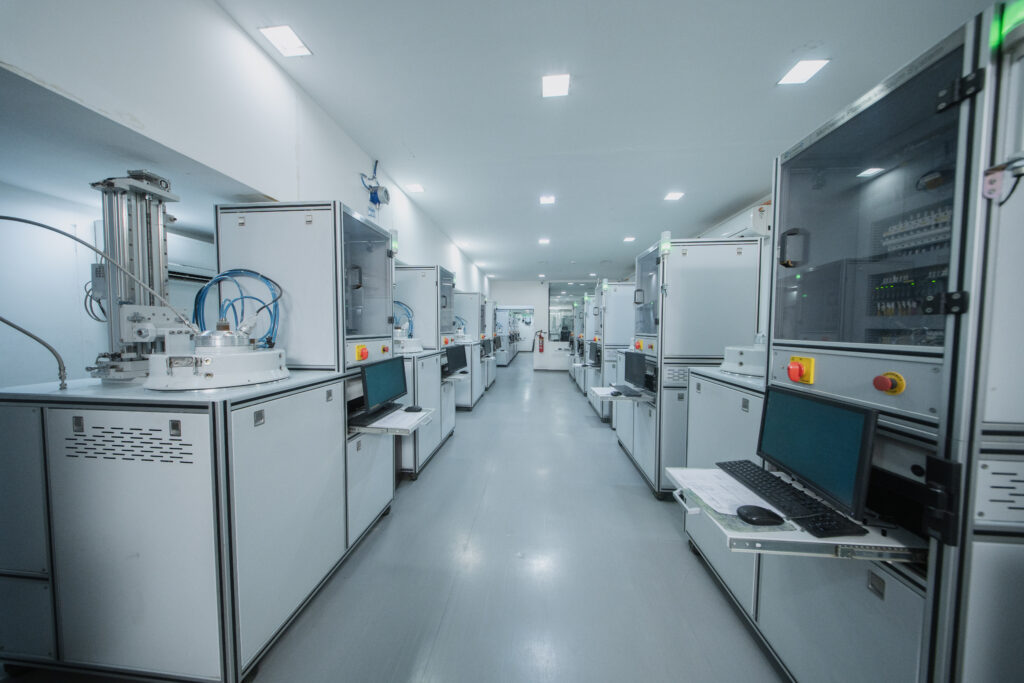

Refers to high-volume CVD foundries capable of producing massive amounts of material.

A metric for how much electricity is consumed per gram of diamond produced.

CVD growth using methane captured from waste and renewable energy.

Unlike the gem industry, tech diamonds are lab-grown and inherently conflict-free.

Optimized for heat dissipation (>1800 W/mK).

Optimized for transparency and low birefringence.

Optimized for low nitrogen (<1 ppb) and high carrier mobility.

Optimized for isotopic purity and long coherence times.

A measurement used in XRD to define the sharpness of a crystal peak. Smaller is better.

A graph showing the orientation of the crystal lattice across a wafer.

A visual map showing the distribution of defects or dopants across a sample.

A process used to separate a grown diamond layer from its substrate for reuse.

Creating "islands" of diamond on a wafer to isolate electronic components.

A hole etched through a diamond wafer to allow for electrical connections between the top and bottom.
